Advanced signal quality analysis


Key Benefits

   •   Accelerates time to design success while lowering cost of end products

   •   Provides pre- and post-layout signal-integrity analysis within
        constraint-driven flow

   •   Reads and writes directly to Allegro PCB and IC package design database


Integrated with Cadence® Allegro® PCB and IC package design, editing, and routing
technologies, Allegro Sigrity™ SI provides advanced SI analysis both pre- and post-layout.
Operating early in the design cycle allows for “what if” scenario exploration, sets more
accurate design constraints, and reduces design iterations.


Allegro Sigrity SI reads and writes directly to the Allegro PCB and IC package design
database for fast and accurate integration of results. It provides a SPICE-based simulator
and embedded field solvers for extraction of 2D and 3D structures. It supports transistor-level
and behavioral I/O modeling, including power-aware simulation using IBIS models. Parallel bus
and serial channel architecture can be explored pre-layout to compare alternatives, or
post-layout for a comprehensive analysis of all associated signals.


Features

   •   Performs a wide variety of SI analyses

   •   Early detection of design errors to increase first-pass success

   •   Sets accurate constraints quickly and early in the process

   •   Improves product performance through solution-space exploration

   •   Explores alternative topologies in the earliest stages

   •   Generates S-parameters from signal topologies or analyzes signals in S-parameter
        format

   •   Generates estimated crosstalk tables to help reduce PCB crosstalk

   •   Verifies multiple-board and silicon-package-board signal paths

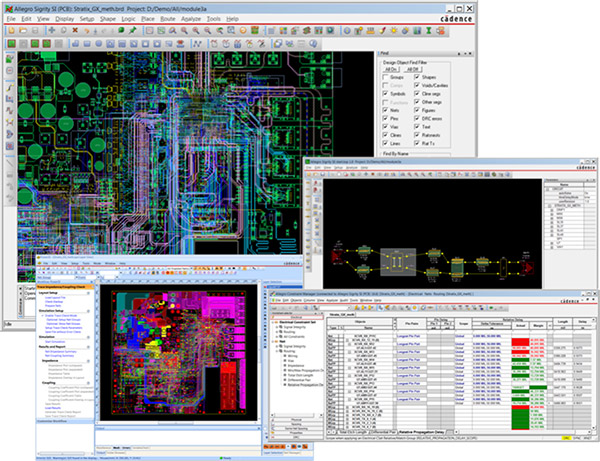

                     Integration of Allegro Sigrity SI Base and Allegro PCB Editor
