The MP3WMA-SO3 decoder ASIC core is designed for ultra low power MP3/WMA decoding applications. The MP3WMA-SO3 is silicon proven.
1. Important Features ‧ All MP3/WMA decoding functions implemented at RTL level ‧ Gate count 105 K gates plus 22K bytes data RAM ‧ Lowest power consumption(clock required 9 MHz) ‧ Single clock synchronous design ‧ Support ISO11172-3, ISO13818-3 layer3 and WMA audio decoding ‧ Straightforward interfaces for SoC applications ‧ Ten-bands equalizer with 64 steps for -20 to 20 dB gain ‧ Thirty-two steps volume control ‧ Fully synthesizable technology independent of verilog RTL code
2. Function Overview MP3WMA-SO3 takes any MP3/WMA bitstream, automatically detects the header and extracts all header/side information, and then uses the information to decode compressed MP3/WMA bit stream. The output from the MP3WMA-SO3 is 16 bits PCM samples. These PCM samples can be transferred to audio DAC via I2S bus or through a rate converter to a low cost fixed sample rate audio DAC.

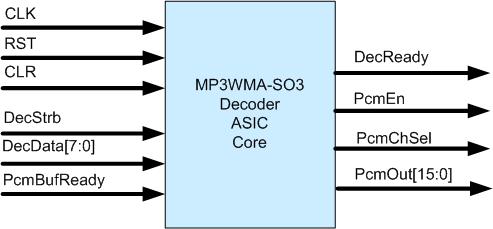

3. MP3WMA-SO3 top level interface
Deliverables ‧ Synthesizable verilog source code ‧ Verilog testbench
|
