Important features
　‧　Support 802.11a, 802.11b, 802.11g, Hiperlan2, 802.16a and DVB Viterbi Decoding
　‧　High Speed（70MHz in 0.35um technology）
　‧　4bits or 3bits soft decision and 1bit hard decision inputs
　‧　Small gate count（43Kgates and 2x128x64 bits memory）
　‧　Trace length programmable from 16 to 112
　‧　Support generators G[133,171],G[171,133] and G[133,175]
　‧　Support puncture rates 1/2, 2/3, 3/4, 5/6, 7/8 and 9/16
　‧　Straight forward interface for system integration
　‧　Can be mapped to FPGA and run in real time

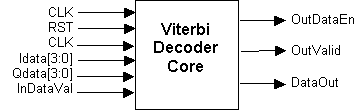

Top level interface


　　


Applications
Wireless LANs（802.11a,b,g, 802.16a and  Hiperland2）, Digital Video/Radio Broadcasting（DVB-S and DVB-T）and Satellite Communications.

Deliverables
Simulation database, FPGA netlist or synthesisable verilog code for ASIC implementation.
