Vendor： |
Mixel, Inc. |
|
| |
Product Name： |
LVDS Serializer |
|
| |
Product Introduce： |
|
|
|
|
| |

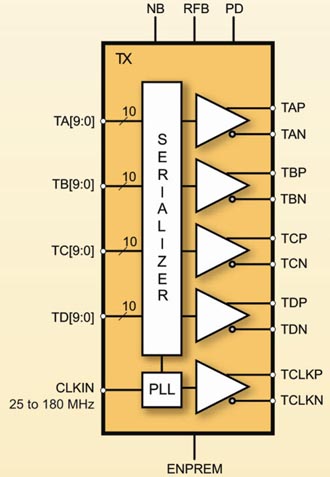

The MXL-SR-LVDS is a high performance 4-channel
LVDS Serializer implemented using digital CMOS technology. Both the serial and parallel data are
organized into four channels.
The parallel data width is programmable, and the input
clock is 25MHz to 165MHz. The Serializer is highly integrated and requires no external components.
It employs optional pre-emphasis to enable transmission over a longer distance while achieving low BER.
The circuit is designed in a modular fashion and desensitized to process variations. This facilitates
process migration, and results in a robust design.
The Mixel SerDes LVDS Features：
‧ 25-165 MHz clock support
‧ Up to 1.25 Gbps bandwidth
‧ Up to 5 Gbps data throughput
‧ Low power CMOS design
‧ Low swing LVDS for low EMI
‧ PLL requires no external components
‧ Core Voltage & 3.3V dual power supply
‧ Optional transmit pre-emphasis
‧ Programmable parallel data width
‧ Rising/falling edge data strobe
‧ Compatible with TIA/EIA-644 LVDS Standard |
 |
|
|
 |
|
|
