Important Features
‧ Decode all MP3 bit streams under 9 MHz Clock,
‧ 45 K gates in logic plus 13K bytes on chip data memory, no program ROM needed,
‧ Ten-band equalizer with 64 steps for -20 to 20 dB gain,
‧ Thirty-two steps volume control,
‧ Superior music quality,
‧ Straightforward user interface,
‧ Hand-crafted optimized data path with complete hard-wired logic,
‧ Fully synthesizable technology independent of verilog RTL code

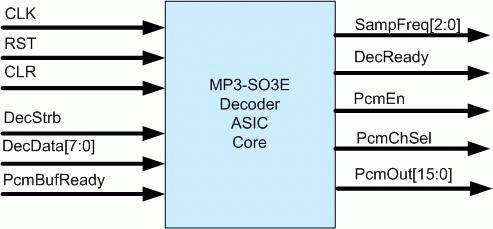

Interface
Why MP3-SO3E is the best choice for MP3 decoding chip？
|
Technology
|
MP3-SO3E
|
ARM7
|
|
Clock rate required
|
9 MHz
|
25 Mhz
|
|
Logic gate*
|
45K |
75K
|
|
Program ROM *
|
None
|
30K bytes
|
|
Data RAM*
|
13K bytes
|
30K bytes
|
|
Total gate count:
|
45+13*8=104 K gates
|
75+30*8+8=323 K gates
|
|
Volume control
|
Yes
|
Yes
|
|
10 band equalization
|
Yes
|
No
|
|
Integration time
|
-4 weeks by one experienced ASIC engineer |
10-15 weeks for a couple of experts in the field of RISC/DSP processor integration.
|
|
Software Issue
|
None
|
10-15 weeks to develop the API
|
| Cost |
Relative low
|
10-15 weeks to develop the API
|
*Assuming, 4 ROM cell = 1 gate count, 1 RAM cell = 1 gate count, ARM7 core logic =45k gates, the interface logic for ARM7 30～50k gates.
In general, DSP cores consume similar silicon area as ARM7 does.
|
