Vendor： |
Mixel, Inc. |
|
| |
Product Name： |
LVDS De-Serializer |
|
| |
Product Introduce： |
|
|
|
|
| |

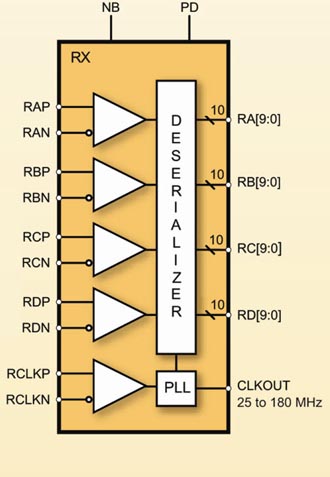

The MXL-DS-LVDS is a high performance 4-channel
LVDS De-serializer implemented using digital CMOS technology. Both the serial and parallel data are
organized into four channels.
The parallel data can be 7 or 10 bits wide per channel.
The input clock is 25MHz to 165MHz.
The De-serializer is highly integrated and requires no external components. Great care was taken to insure matching between the Data and Clock channels to
maximize the de-serializer margin.
The circuit is designed in a modular fashion and desensitized to process variations. This facilitates
process migration, and results in a robust design.
The Mixel SerDes LVDS Features：
‧ 25-165 MHz clock support
‧ Up to 1.15 Gbps bandwidth
‧ Up to 5 Gbps data throughput
‧ Low power CMOS design
‧ Power Down mode
‧ Low swing LVDS devices for low EMI
‧ PLL requires no external components
‧ 1.2V/3.3V dual power supply
‧ Programmable parallel data width
‧ Compatible with TIA/EIA-644 LVDS Standard |
 |
|
|
 |
|
|
|
