Full-chip PDN and I/O net power-aware distributed models
Key Benefits
• Accurate distributed model to reflect the true circuit behavior, including
TSV
• Efficient extraction of mutual inductance and coupling capacitance for
both power grid structures and I/O signal interconnects
• Maximum accuracy with a compact chip model that is spatially distributed
with high pin resolution
Cadence® Sigrity™ XcitePI™ Extraction technology takes chip layout data in GDSII or
LEF/DEF formats, and generates a comprehensive SPICE model that consists of a fully
distributed PDN and I/O nets and accounts for all electromagnetic coupling effects
between signals, power, and ground. The models can be used in conjunction with
models of package and boards for chip/package/board power-integrity (PI) or
power-aware signal-integrity (SI) analysis.

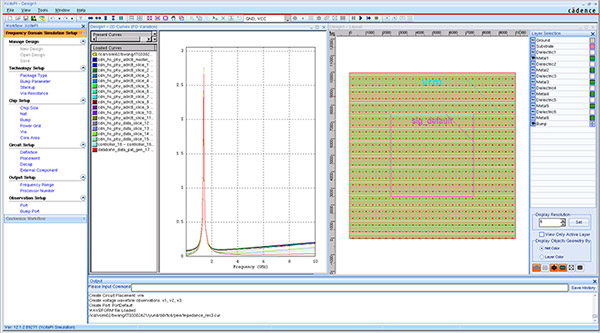

XcitePI Extraction facilitates effective design with a range of electrical performance
assessment and visualization options. These options show the impact of changes to
capacitor locations, bump, pad, and power grid designs, helping design teams avoid
costly late-stage design re-spins.
Features
• Rapid what-if experiments for achieving targeted design performance improvement
• Compact circuit size, compressed from the model of the entire multi-layer power,
ground, and/or signal connections
• Simple and easy to run at any chip design stage, even when chip is not completed
• Generates SPICE models of full-chip PDN for use in chip/package/board simulations
• Generates SPICE models of chip I/O signals coupled to power/ground to be used in
chip/package/board analysis of high-speed channels and buses
• Includes MCP model header for easy connectivity to package and IBIS models
• Generated models include effects from TSVs
• Visualizes potential chip performance issues
• Assesses on-chip decoupling capacitor implementations
• What-if analysis of decap, bump, wire, and via size, and location
|
