Comprehensive library development toolset


Key Benefits

   •   Reduces time and optimizes resources associated with library
        development and verification through integrated creation and validation
        processes

   •   Increased accuracy during the part creation process

   •   TÜV SÜD “Fit for Purpose – TCL1” certified to meet ISO 26262
        automotive functional safety requirements


Library creation is often a tedious, time-consuming task requiring a high degree of
manual effort for development and validation of required parts. Large pin count
devices, now becoming the norm for most designs, are especially challenging and
prone to error if automated processes are not employed.

The Cadence® Allegro® PCB Librarian provides a powerful mix of functionality that
includes the ability to quickly import and manipulate data, split pins across multiple
symbols, and define visibility for power and ground pins. The capability to
automatically manage, track, and save part versions while continuously recording
differences removes the need for manual intervention and greatly increases
accuracy during the part creation process.

For companies who may have multiple EDA tool sets, Allegro PCB Librarian
provides a single development environment and supports import/export of other
EDA vendors’ library data in addition to common industry file formats. Part creation
can be further accelerated by directly importing pin tables and pin grids, which can
then be customized to meet company-specific standards.

Finally, real-time validation and built-in rule checks at each stage of the part
creation process ensures that schematic symbols and PCB footprints are always in
sync. All of these capabilities are also an integral part of Allegro EDM and provide
the foundation for a company requiring a larger scale library and design data
management environment.


Automotive TCL1 Certified for ISO 26262

The industry’s first PCB design and verification flow to achieve “Fit for Purpose -
Tool Confidence Level 1 (TCL1)” certification enables you to meet stringent ISO
26262 automotive safety requirements. The flow includes everything from design
authoring to simulation to physical realization and verification using the PSpice®,
Allegro, and OrCAD® product suites. The high-performance design entry,
simulation, and layout editing tools provide an integrated environment for design
engineers to validate the safety specifications against individual circuit
specifications for design confidence. For information on the safety manuals, Tool
Confidence Analysis (TCA) documents, and compliance reports from TÜV SÜD,
download the Functional Safety Documentation Kits through Cadence Online
Support.


Features

   •   Reduces time and optimizes resources associated with library development
        and verification through integrated creation and validation processes

   •   Straightforward methodology for development of large pin count devices
        reduces time from days to minutes

   •   Powerful graphic editor that supports custom shapes and spreadsheet import
        for schematic symbol creation ensures data reliability and integrity

   •   Support for both full and incremental import of part information from common
        industry formats enables quick part creation and updates

   •   Common library development environment for multiple vendor schematic tools
        including Mentor Graphics Design Architect and Mentor Graphics Viewdraw

   •   Provides built-in version management via metadata support

   •   Reduces errors through real-time and batch verification of part data

   •   Integrates tightly with Cadence OrCAD® Capture, Allegro PCB Design Editor
        HDL, Allegro Package Designer, and Allegro EDM

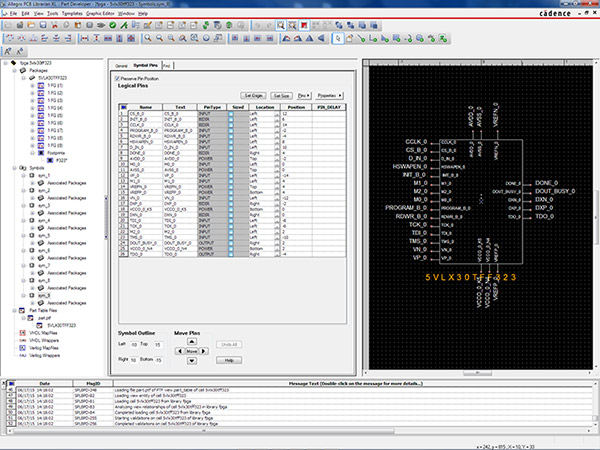

                           Allegro PCB Librarian Screenshot
